Description
This kit contains all Oil and coolant seals required for for Gen2 Valley jobs. EVEN for stock applications, or competitor EGR delete kits.
If you buy this with an EGR delete kit, you will have a few redundant seals, depending on what options you select.
But you will not be missing anything, no matter what config you order, if you are re-using any stock parts, etc.

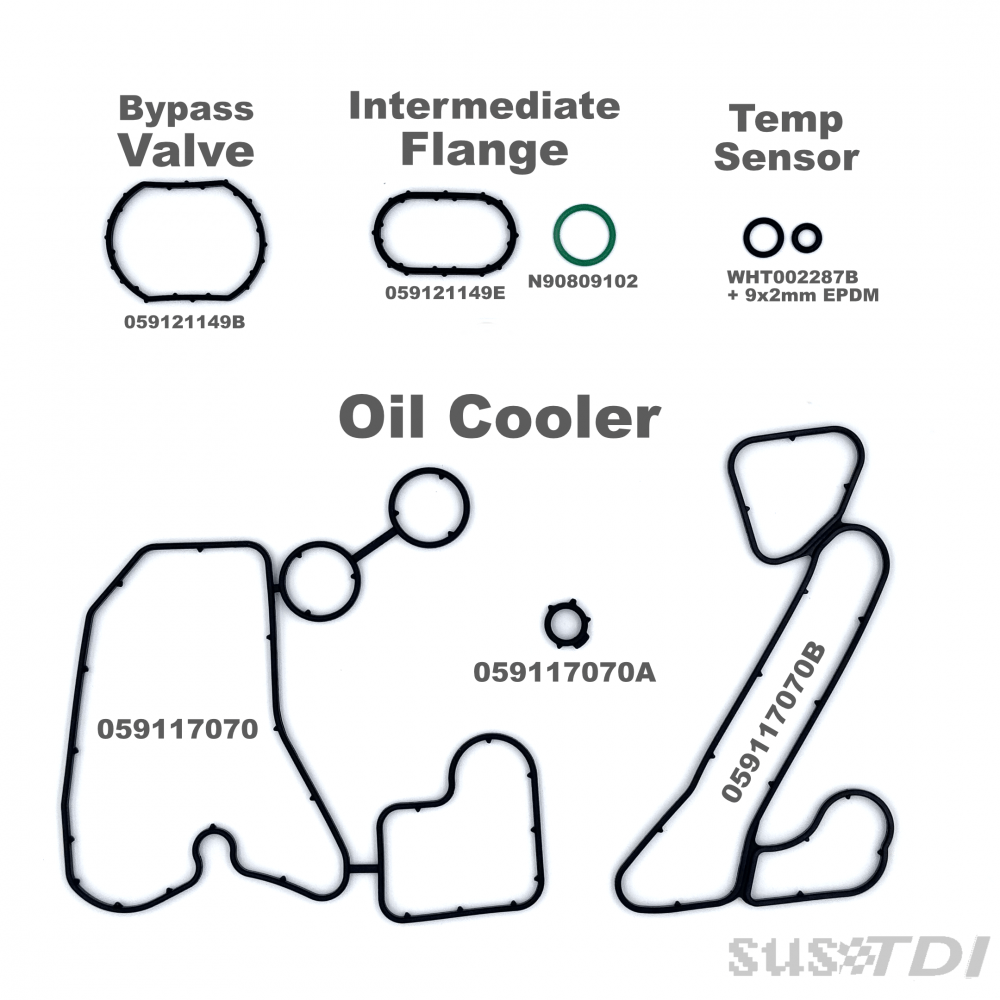

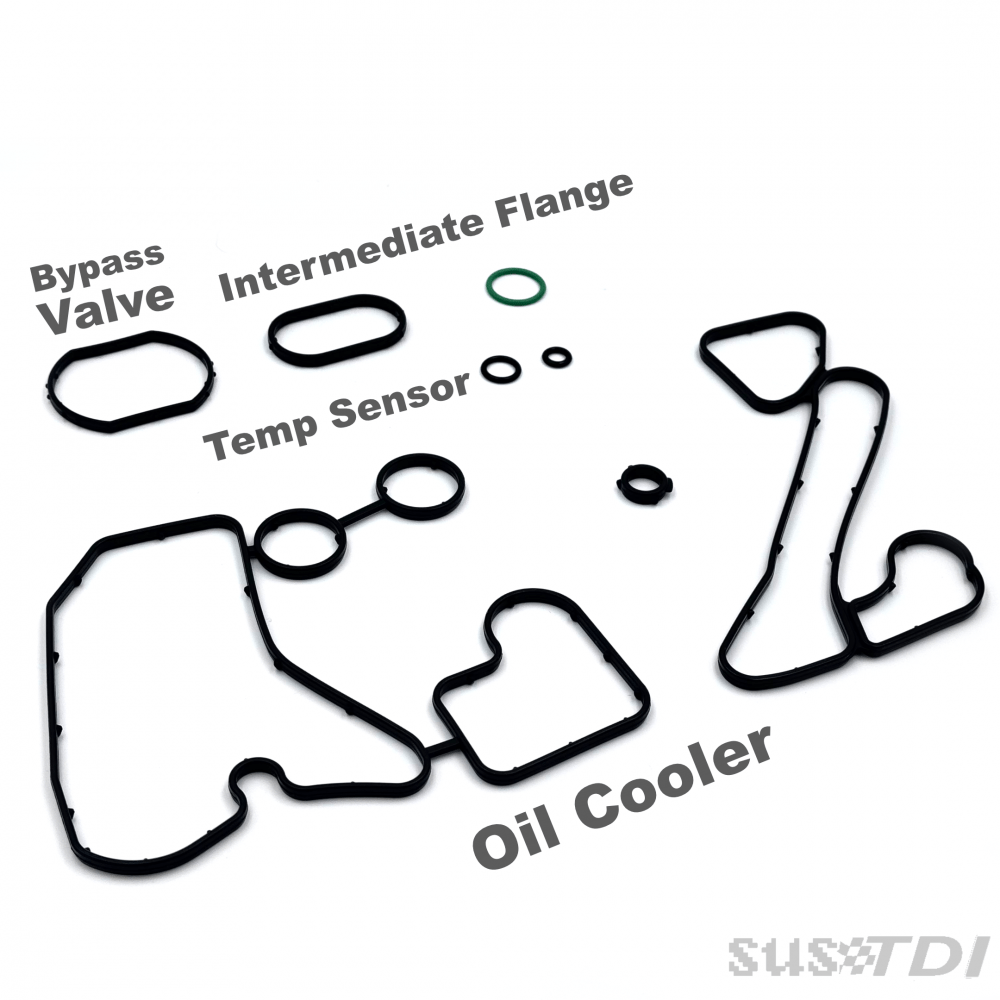

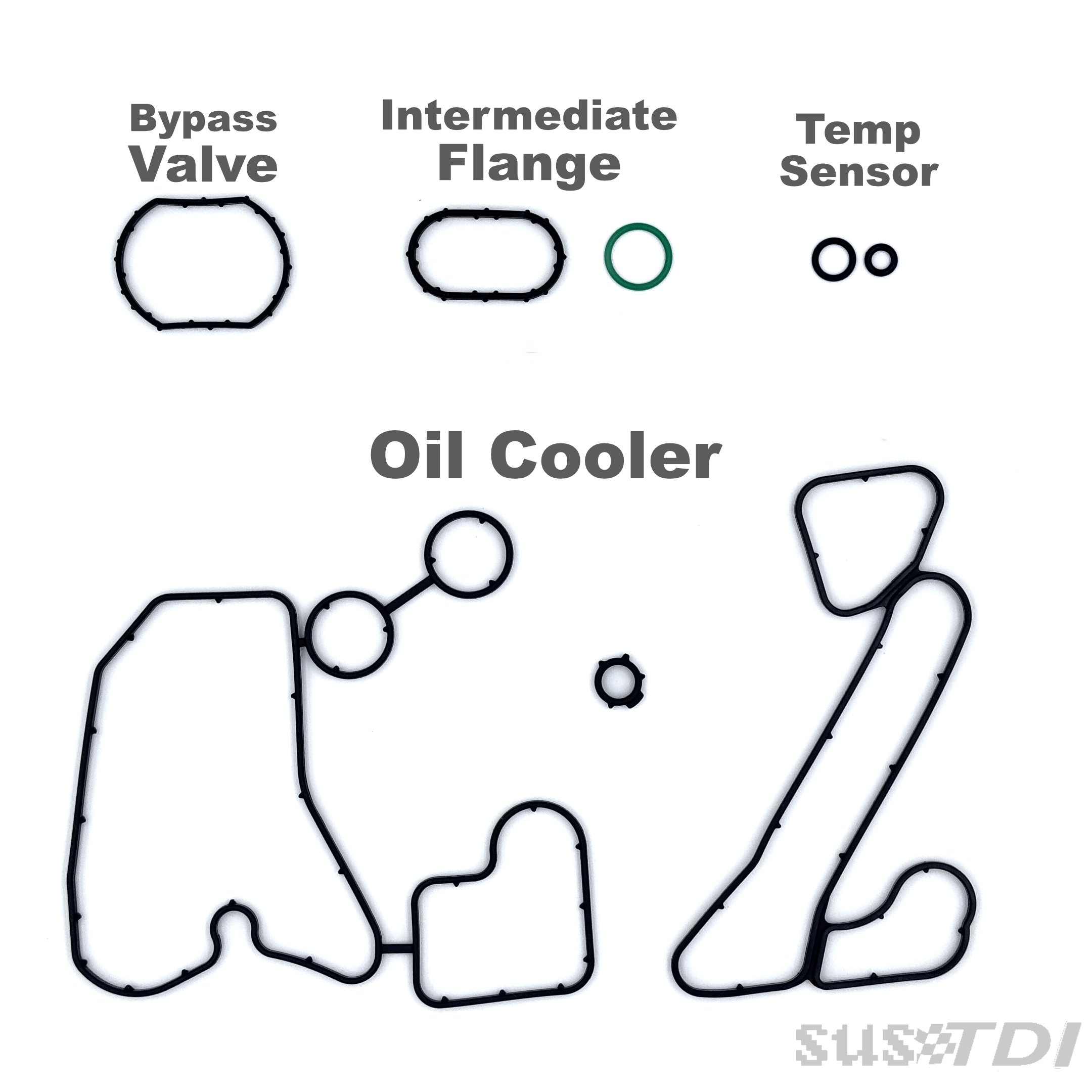

For the Oil Cooler / Sandwich Plate (HNBR)
- 059117070 (“Goggle seal”, between engine block and sandwich plate)
- 059117070A (“Crop Circle”, between engine block and sandwich plate)
- 059117070B (“Z” seal , between Oil cooler and sandwich plate, also just called oil cooler seal)
For the Bypass Valve (EPDM)
- 059121149B (this seal comes included with bypass valve Deletes and new stock valves)
For the Intermediate Flange (EPDM+HNBR)
- 059121149E (this seal comes included with billet intermediate flange and new OEM flange)
- N90809102
For the Temp sensor Flange (EPDM)
- WHT002287B
- 9x2mm EPDM O-ring (this seal is not available from VW)
Why?
Its no longer a mystery that VAG is fleecing us, the price increases are far outpacing inflation. If you’ve looked up seal prices in the last year you know this.
My goal with this is to provide these critical seals matching or even better than OE spec, and never jack up the price because i literally don’t have to.
What is the difference between Genuine VW and these?
Performance and material wise, they are identical. Guaranteed by design and material testing.
These seals only use coolant-grade HNBR and peroxide-cured EPDM.
To be honest with you, the OEM Elring oil cooler seals are actually much worse quality than these, I’m not sure why but i was pretty surprised.
Who is making them? How can the quality be trusted?
These seals were reverse-engineered and manufactured by NIYOK SEAL in Taiwan to OE material and tolerance specs.
All seals go through AOI dimensionsal check, with material report on each production run.
By FCP Euro standards i can call these OEM because NIYOK is an OE supplier for a lot of brands, but I’m not going to stretch the truth like they do lol.
I guarantee 100% perfect fitment and exact OEM performance with these seals.
Country of Origin:
- Seals: Mainland Taiwan
